McGRAW

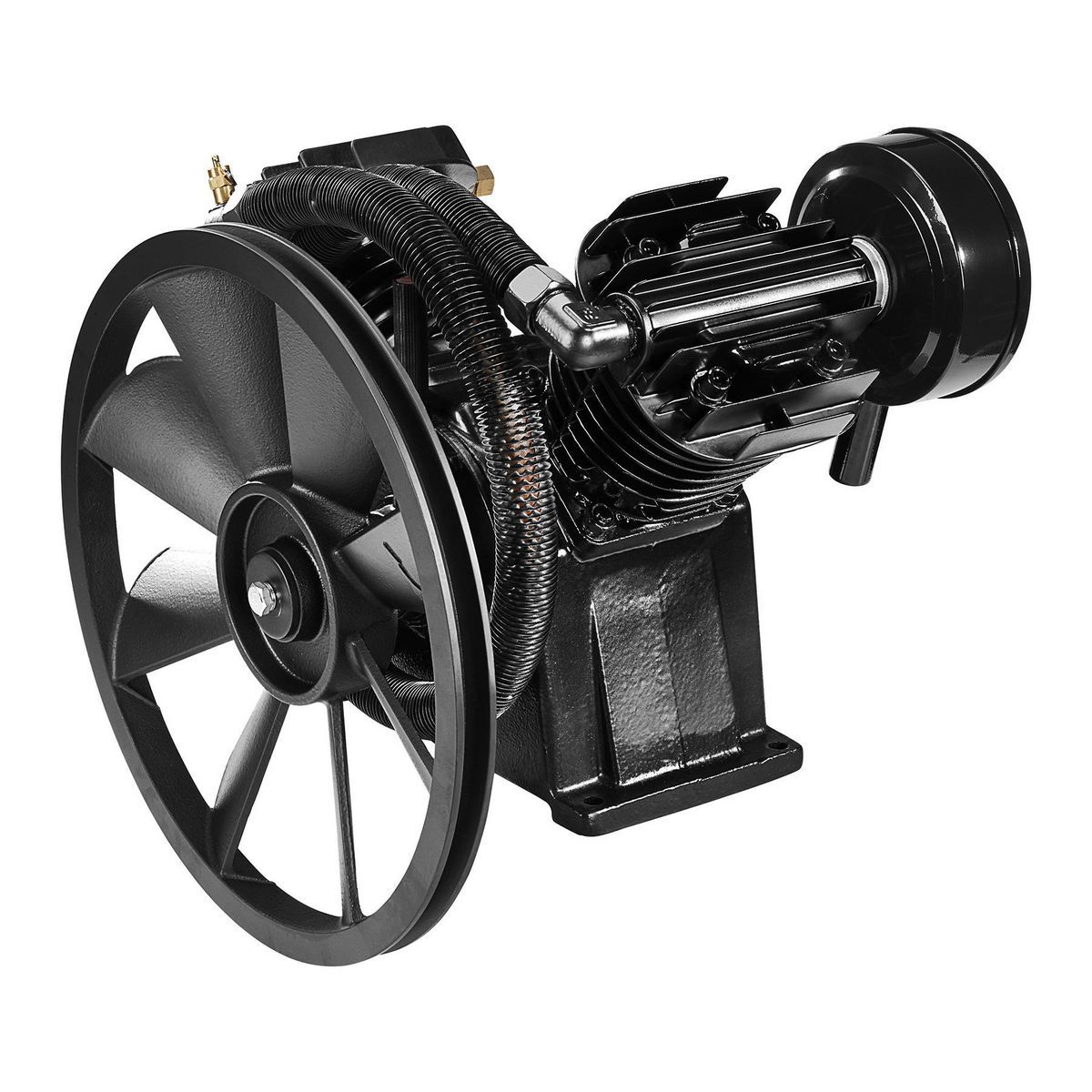

The MCGRAW™ 175 PSI V-Style Two-Stage Cast Iron Air Compressor Pump is a direct replacement for MCGRAW™, CENTRAL PNEUMATIC™, DEWALT, PORTER-CABLE, SANBORN, POWERMATE, MAGNA FORCE, INDUSTRIAL AIR, and other air compressors. This pump fits compressors with a 10-1/4" x 5-1/4" bolt pattern. The pump includes compression fittings to accommodate 3/8" or 1/2" outlet tubing , as well as an extra set of gaskets for future maintenance.

Airflow (CFM): 15.0 CFM @ 90 PSI / 14.8 CFM @ 120 PSI
Power: 5 HP
Maximum pressure: 175 PSI
Maximum speed: 1180 RPM (with 5.6" motor pulley)
Materials: Cast iron and aluminum
Noise level: 86.5 dBA
Dimensions: Height 18-3/4 in x Length 18 in x Width 14 in
Net weight: 74.18 lb (Shipping weight: 80.15 lb)
Stroke length: 3.75 in / 2.56 in

Main features:

• Cast iron cylinders for durability and a long service life

• Automotive-style ball bearings and stainless steel valves for increased reliability and extended service life

• Pleated air filter with metal cartridge for efficient and long-lasting filtration

• Head and finned aluminum cover for better heat dissipation

• Oil fill and drain plugs for easy maintenance

• Viewing glass for quickly measuring the oil level
