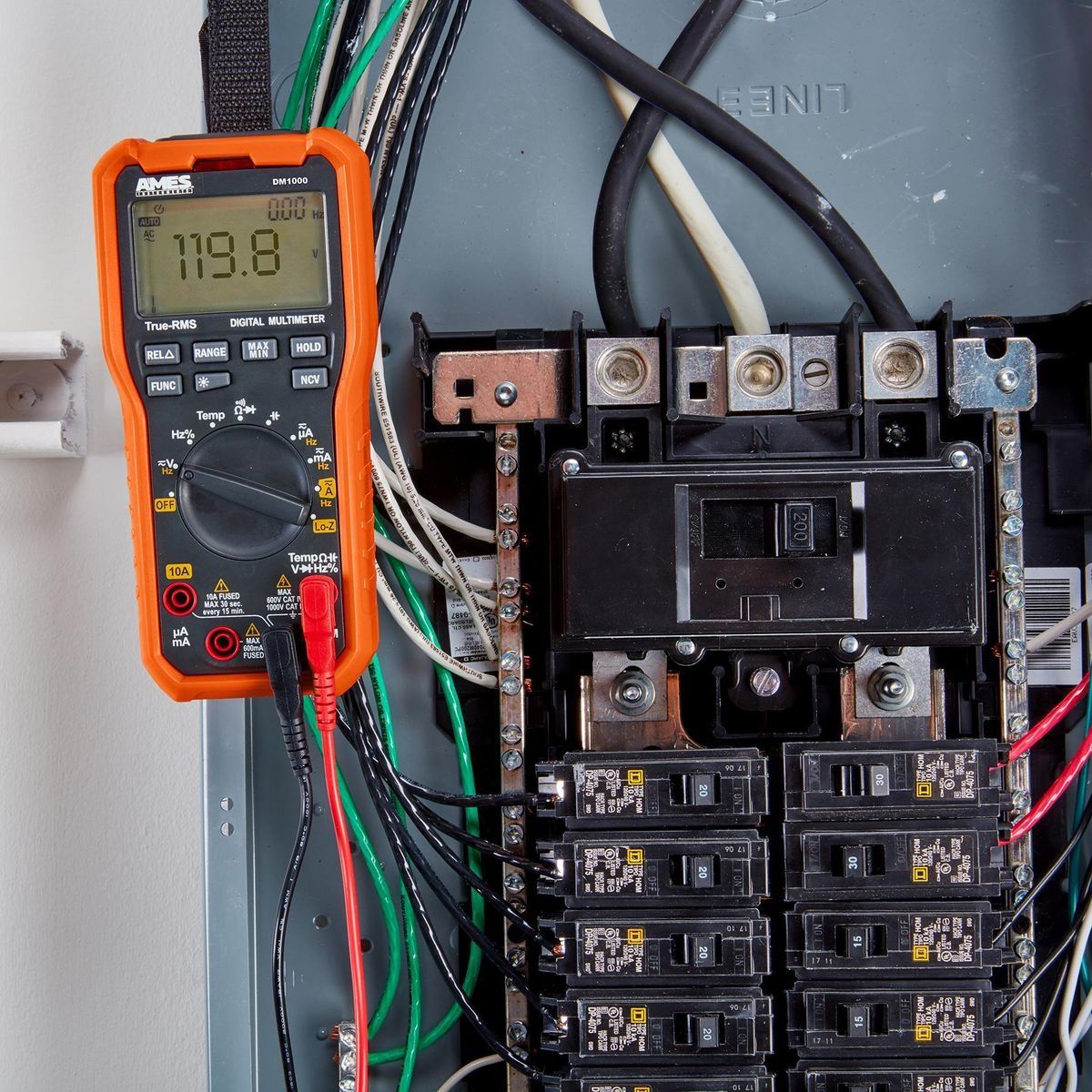

The Ames True-RMS digital multimeter offers a full menu of features. Use this professional multimeter to measure and verify the presence of voltage before connecting new equipment or making repairs. The LoZ function is used to detect the presence of "ghost voltage" when installing cables or when tracing faults on cable runs. Its temperature and µA measurement functions are designed for HVAC applications, flame sensor testing and temperature measurement. This meter is fully compliant with CAT III 1000V safety standards, providing an added measure of safety for high voltage applications and has been independently tested by ETL.
- AC and DC voltage up to 1000V
- Resistance range: 66MΩ
- AC/DC Current: 10A
- Integrated non-contact voltage measurement
- Auto-Hold captures the first stable displayed value
- Display: 6000 counts, True RMS
- Audible continuity, data hold, low battery indicator
- LoZ low input impedance: helps avoid false readings due to phantom voltage
- Requires a 9V battery
AC Voltage:
660mV/6.6V/66V/660V/1000V
Accuracy:
DC Voltage: ±(0.8%+3)
AC Voltage: ±(1.0%+3)
DC Current: ±(2.0%+5)
AC Current: ±(3.0%+5)
Resistance: ±(1.5%+5)
Temperature: ±(1.0%+3)
Capacitance: ±(4.0%+5)
Frequency V Position: ±(1.5%+5)
Frequency Hz Position: ±(1.5%+5)
Duty Cycle: ±2%
Temperature measurements:
0°C~1000°C/ -32°F~1832°F
