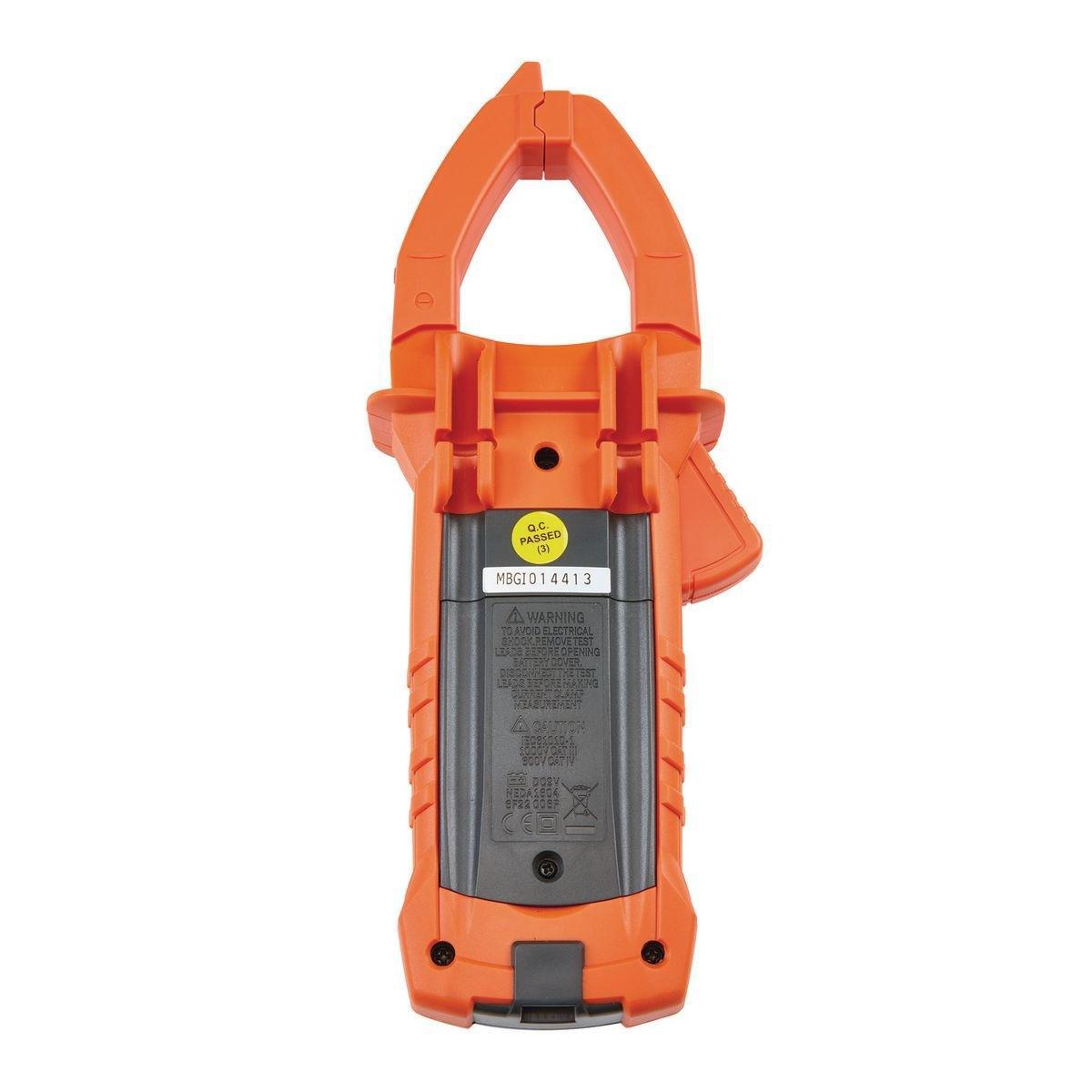

CM1000A Industrial AC/DC T-RMS AMES Multimeter

AMES

The Ames™ 1000A AC True-RMS Clamp Meter is designed for the maintenance of electric motors in high voltage industrial environments. The inrush current capability allows for motor start-up monitoring. The Φ40 mm / 1.6-inch jaw opening can easily handle large conductors. This professional T-RMS clamp meter provides a full range of standard multimeter features including AC/DC current, AC/DC voltage, frequency, True-RMS, non-contact voltage detection, resistance, continuity with built-in indicator. Safety Class CAT III 1000V, CAT IV 600V.

• 1000A AC/DC current, jaw opening: Φ40 mm / 1.6 in.
• DC Voltage: 1000V, AC Voltage 750V
• Resistance: 60 MΩ, capacitance: 99.99 mF, frequency: 10 KHz
• Display: 6000 counts, auto-ranging, auto power-off, diode test
• Audible continuity, data hold, low battery indicator
• Relative measurement
• True-RMS
• Built-in work light
• Inrush measurement (motor starting current)
• Built-in non-contact voltage measurement
• Requires one 9-volt battery

AC Volts:

60mV / 600mV / 6V / 60V / 600V; 750V

Jaw Opening:

Φ40 mm / 1.6"

Accuracy:

DC Voltage: ± (0.8% + 4)
AC Voltage: ± (0.8 + 4)
AC Current: ± (2.0 + 8)
DC Current: ± (2.0 + 8)
Resistance: ± (2.0% + 5)
Capacitance ± (3.0% + 5)
Frequency ± (1.5% + 5)
