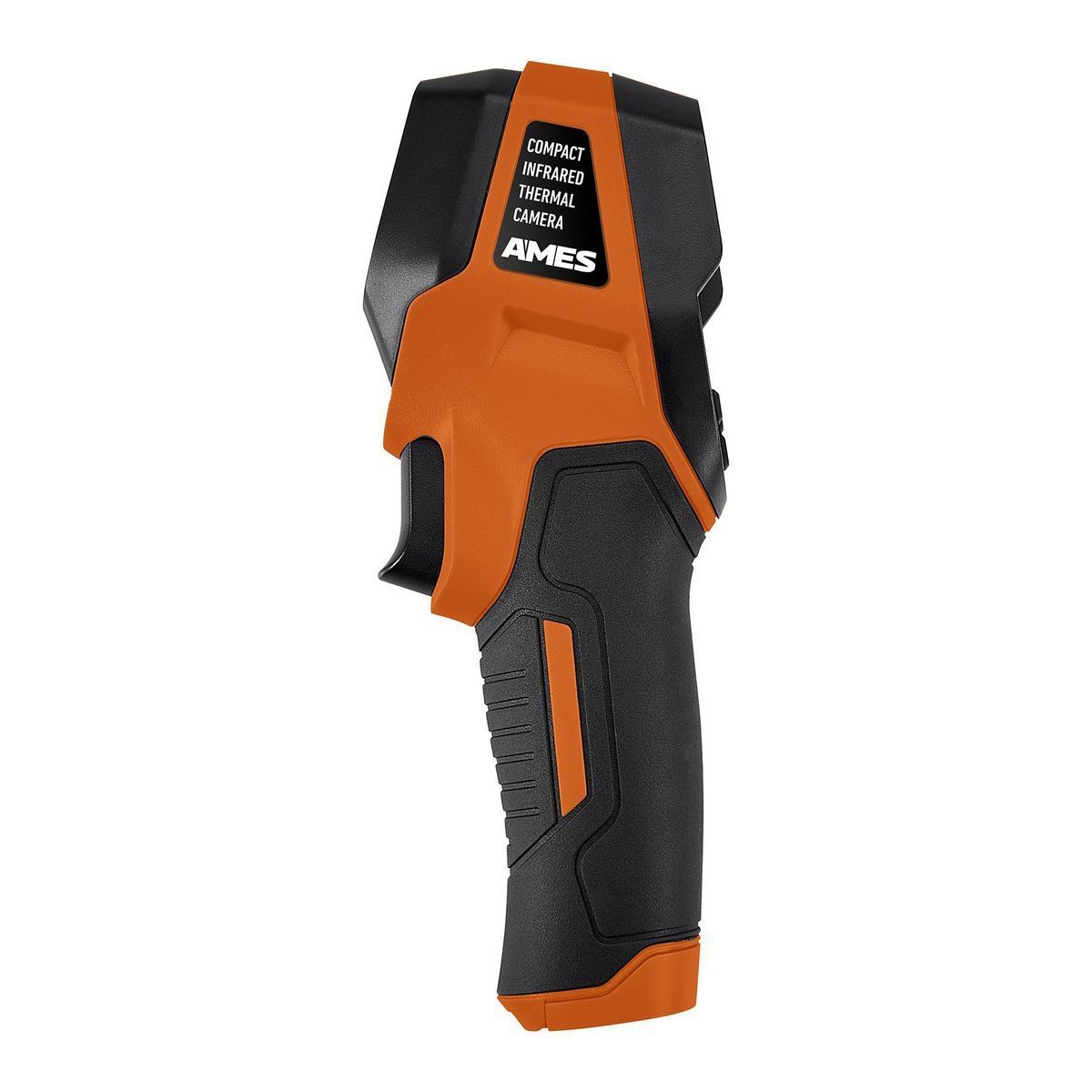

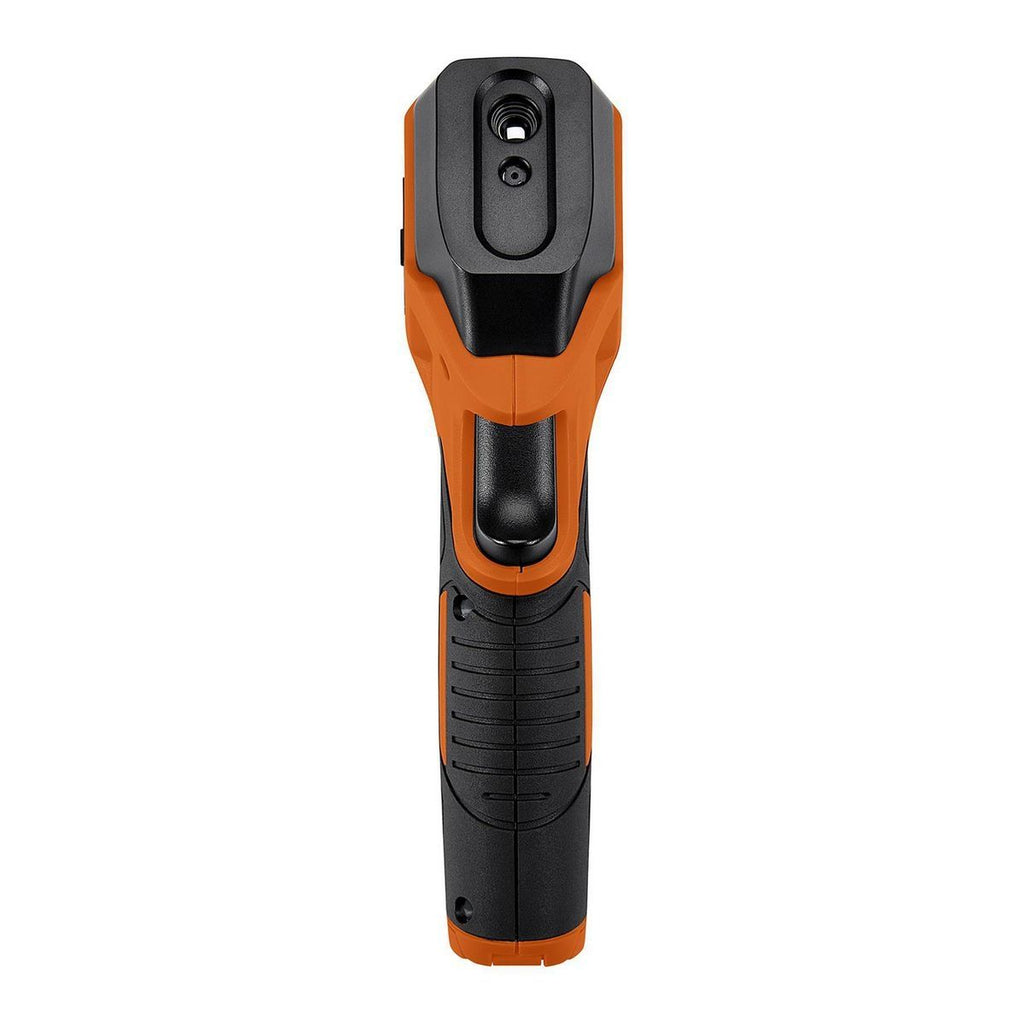

Professional Compact Infrared Thermal Camera-AMES

0.85 lb

We have run out of stock for this item.

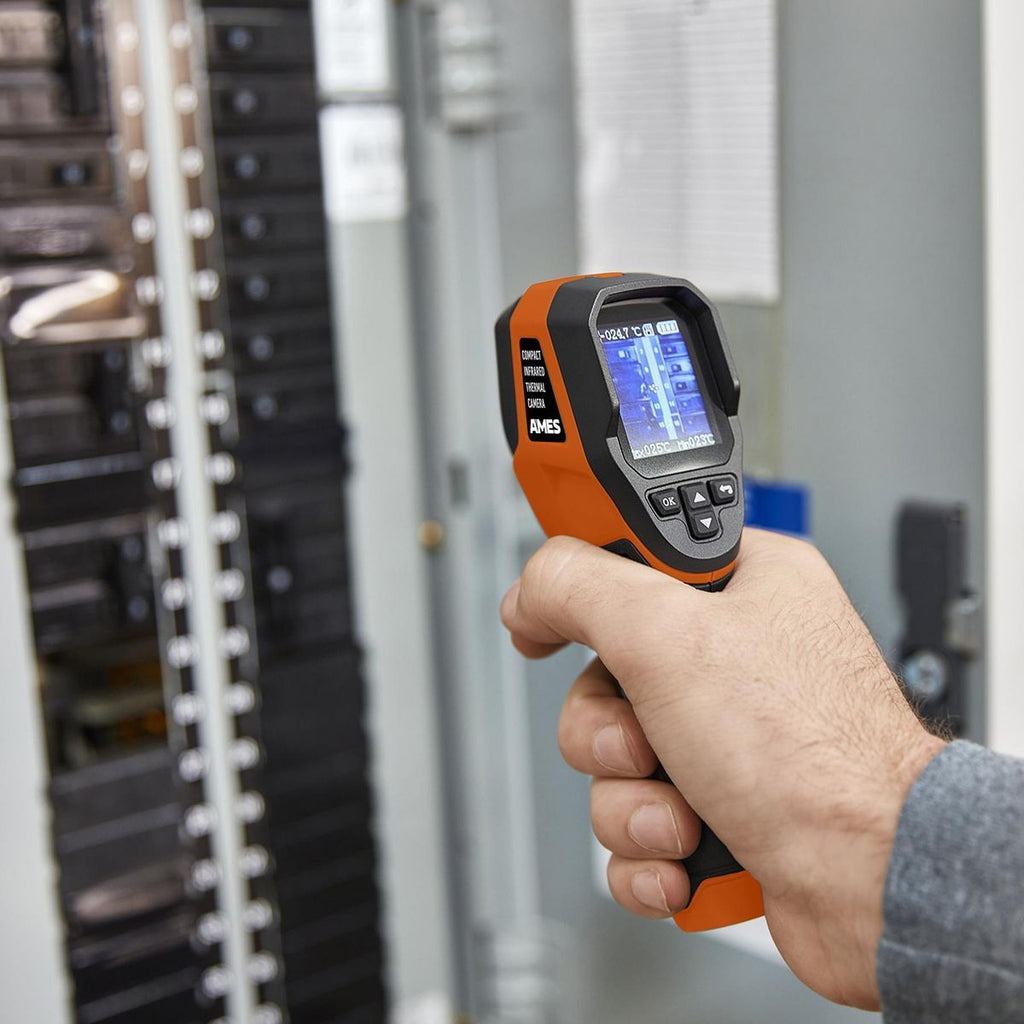

The AMES INSTRUMENTS™ Professional Compact Infrared Thermal Imager makes it easy to troubleshoot problems with automotive heat, electrical connections, motors, HVAC and electrical, and insulation leaks around buildings to identify potential energy savings. The camera's easy-to-read display combines a visual image of your target into an infrared heat map for quick and easy leak detection. Capture the midspot temperature measurement, as well as the hotspot and lowspot temperature measurements in real time. Easily save mixed thermal images and data to the 4GB micro SD card or upload to your device with the USB cable.

  • Wide temperature range of -4° F ~ 1202° F (-15° C ~ 650° C)
  • Display resolution: 160 x 128
  • Large, easy-to-read 1.8" LCD color display
  • Five levels of visual and thermal image fusion
  • 4GB micro SD card included, stores up to 10,000 images
  • Three selectable color palettes make it easy to read heatmaps
  • Easily save images and data to the removable 4GB micro SD card or download to your device with the USB cable (both included)
  • Selectable temperature units °F or °C
  • Emissivity adjustable from 0.1 to 1.0
  • Thermal sensor resolution: 32 x 32

Display Size: 1.8"
Media Card Slot: Yes
Accuracy: +/- 2% or +/- 2°
Battery Type: Alkaline
Battery(ies) Included: Yes

Capacity: 4 GB
Display type: LCD
Temperature range: -4°F ~ 1202°F (-15°C ~ 650°C)
