MCGRAW V Style 2 HP 155 PSI Single Stage Cast Iron Air Compressor Pump

35.52 lb

We have run out of stock for this item.

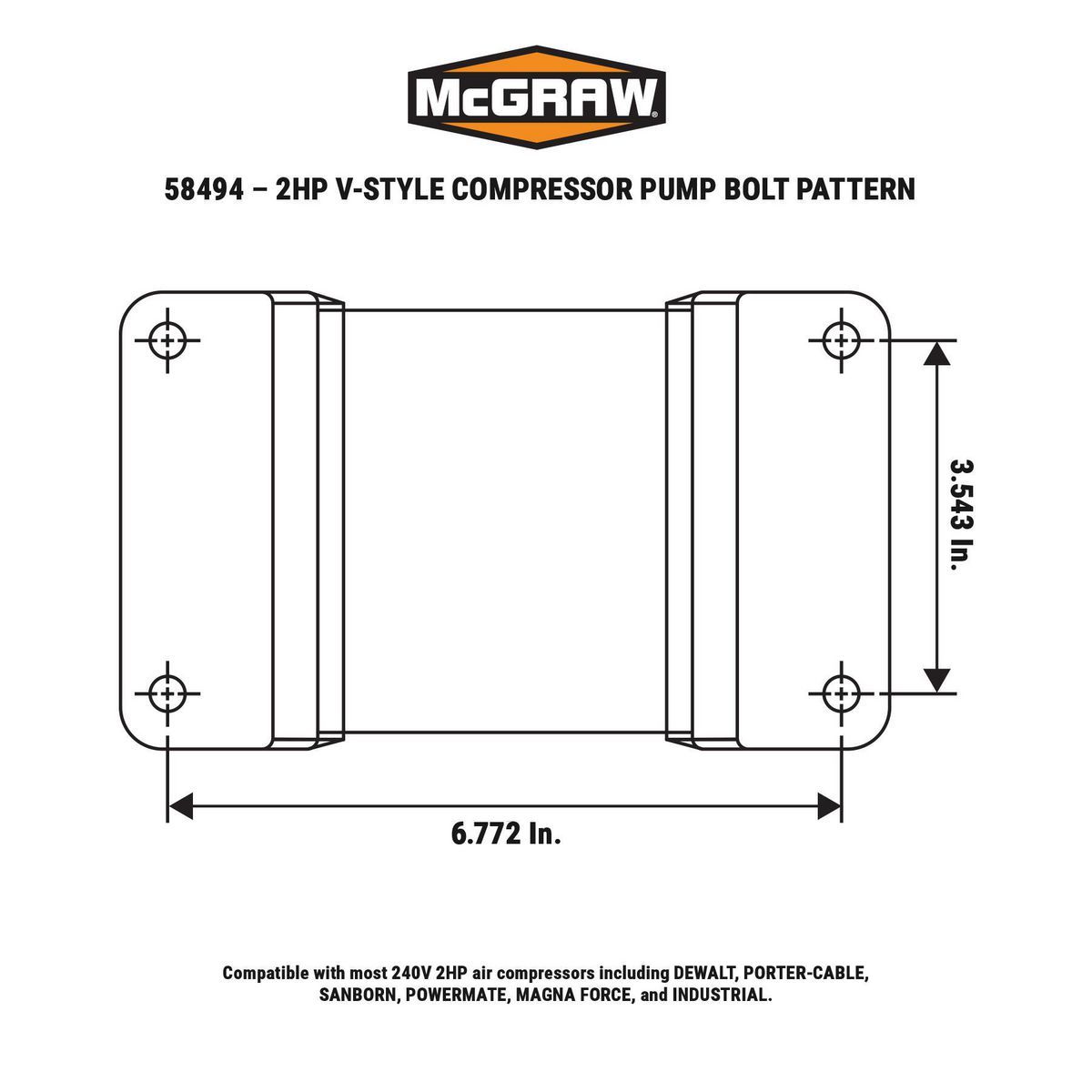

The MCGRAW® 155 PSI V-Style Single Stage Cast Iron Air Compressor Pump is a direct replacement pump for most 120v, 2HP DEWALT, PORTER-CABLE, SANBORN, POWERMATE, MAGNA FORCE and INDUSTRIAL air compressors . Fits compressors with a 6-3/4 in. x 3-9/16 in. bolt pattern. The pump includes compression fittings to accommodate 3/8 in. or 1/2 in. outlet tubing, plus an extra set of seals for future maintenance. Designed for use with a 3.6" (min SCFM) to 3.85" (max SCFM) motor pulley.

  • Cast iron cylinders for durability and long life
  • Automotive-style ball bearings and stainless steel reed valves for added durability
  • Pleated air filter with metal cartridge for efficient and long-lasting filtration
  • Aluminum head and finned cover for better heat dissipation
  • Uses an A-width V-belt (not included)
  • 11.4 oz. oil tank (oil not included)
  • 155 psi maximum working pressure
  • 5.3 SCFM at 90psi*
  • 1300 rpm max
